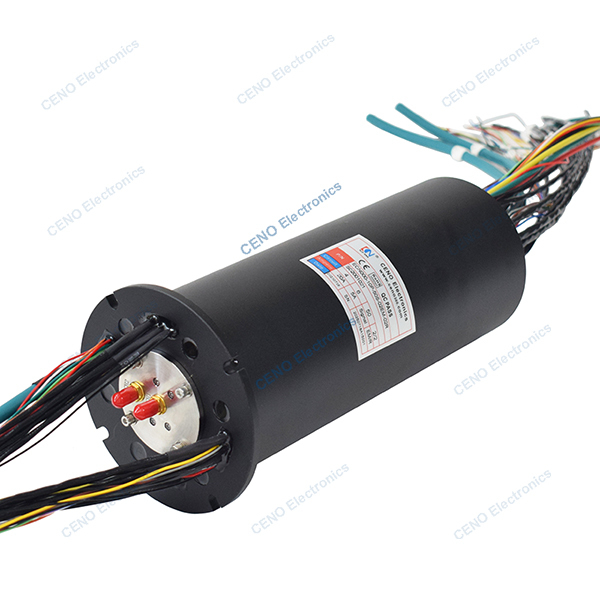

Low temperature integrate electric power Ethernet & RF Rotary union slip ring
ECN000-10P-50S-02EM-02R is CENO integrate slip ring combine circuits electric power, Ethernet signal and 2 channels radio frequency. RF slip rings are specifically designed and categorized by transmission frequency into low-frequency RF slip rings and high-frequency/microwave slip rings. Low-frequency RF slip rings are relatively simple to manufacture and are relatively inexpensive. High-frequency/microwave slip rings are difficult to design and manufacture, requiring extremely high standards for materials and structure, and are therefore expensive. For more information please contact us.
Specification
|
ECN000-10P-50S-02EM-02R
|
Specification |
| Current & Circuits |
4*20A; 6 * 5A; 50 * Signal; 2 * Ethernet signal |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-40°C~+60°C |
| Working humidity |
60%RH |
| IP protection grade |
IP51 |
| Operating speed |
0~100rpm |
| Outer diameter |
Ø90mm |
| Contact material |
Precious metal |
| Housing material |
Aluminium Alloy |
| Lead wire length |
As customized |
| Rotation way |
Flange installation |
| Radio frequency |
Parameters |
| |
Channel1 |
Channel 2 |
| Connector type |
SMA-f (50Ω) |
SMA-f (50Ω) |
| Style |
Style I |
Style I |
| Frequency range |
DC to 8GHz |
DC to 8GHz |
| WSR (max) |
1.4 |
1.5 |
| WSR floating (max) |
0.15 |
0.2 |
| Insert loss |
0.7dB |
1.1dB |
| Insert loss (max) |
0.1dB |
0.1dB |
| Average power |
10W@1Ghz |
10W@1Ghz |
| Isolation |
70dB |
70dB |
Features
- High frequency and option channels
- Different structure as customized
- 2 Channels and optional
- Suit low temperature environment
- Install easy & Free maintenance
Applications
- Radar antenna
- High definition video
- Air traffic control radar
- Satellite earth station
- EMC system
Optional
- Circuit, Voltage, Current
- Channels and signals
- Structure and Materials
- Protection grade
- Working speed & temperature
Outline drawing
