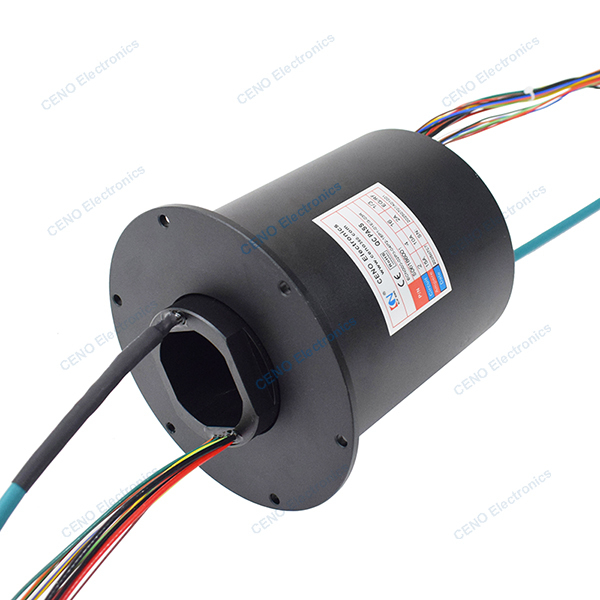

Integrate Electric power Ethernet & RF Slip Ring with Radio Frequency Rotary Union
ECN000-02P3-04P2-16P1-01EG-03R is CENO integrate slip ring which combine circuits electric power, Ethernet signal and 3 channels RF signal. RF slip rings are specially designed for transmitting low or high-frequency RF signals. They can be divided into single-channel and multi-channel RF slip rings. They can also be integrated with electrical signals and other communication signals to meet all transmission needs of modern complex systems, For more information please contact us.
Specification
| ECN000-02P3-04P2-16P1-01EG-03R Specification |
| Current & Circuits |
2 * 15A; 4 * 10A; 16 * 2A; 1 * 1000M Ethernet; 3 * RF |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 30mΩ |
| Working temperature |
-20°C~+60°C |
| Working humidity |
60%RH |
| IP protection grade |
IP51 |
| Operating speed |
0~50rpm |
| Outer diameter |
Ø119mm |
| Contact material |
Precious metal |
| Housing material |
Aluminium Alloy |
| Lead wire length |
As customized |
| Rotation way |
Flange installation |
| Radio frequency |
Parameters |
| |
Channel1 |
Channel 2 |
Channel 3 |
| Connector type |
SMA-f (50Ω) |
SMA-f (50Ω) |
SMA-f (50Ω) |
| Frequency range |
DC to 18GHz |
DC to 18GHz |
DC to 18GHz |
| VSWR (max) |
1.4@DC-8GHz
1.8@8-18GHz
|
2@DC-4GHz
3@4-8GHz
3.5@8-12GHz
4.5@12-18GHz
|
2@DC-4GHz
3@4-8GHz
3.5@8-12GHz
4.5@12-18GHz
|
| Insert loss (max) |
0.5dB@DC-8GHz
1.1dB@8-18GHz
|
0.75dB@DC-4GHz
1.5dB@4-8GHz
2.5dB@8-12GHz
3dB@12-18GHz
|
0.75dB@DC-4GHz
1.5dB@4-8GHz
2.5dB@8-12GHz
3dB@12-18GHz
|
| Average power |
50W@1Ghz |
30W@1Ghz |
30W@1Ghz |
| Isolation |
50dB |
50dB |
50dB |
Features
- Integrate power, Ethernet & 3 channels radio frequency and option
- Stable performance & variety of functions
- Install easy & Free maintenance
Applications
- Radar antenna
- Air traffic control radar
- EMC system
- Electronic warfare system
- Air traffic control radar
Optional
- Circuit, Voltage, Current
- Channels & frequency range
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
