Złącze obrotowe o częstotliwości radiowej
>
|
|
| Miejsce pochodzenia | Chiny |
| Nazwa handlowa | CENO |
| Orzecznictwo | ISO9001,CE,RoHS,UL |
| Numer modelu | ECN000-04P2-16S-02R |

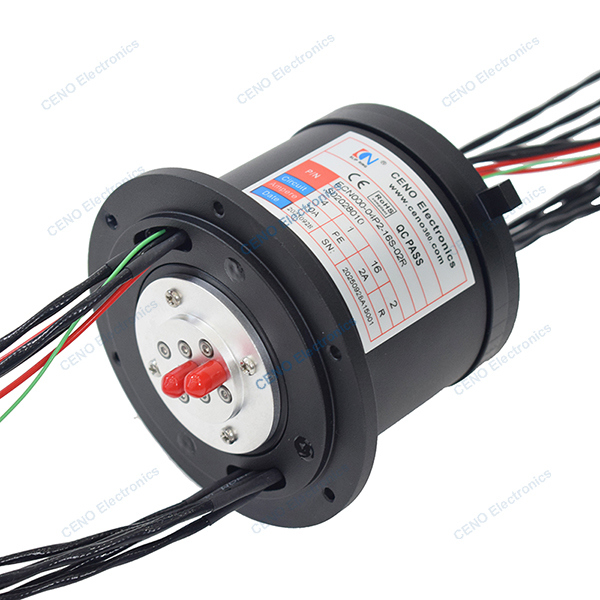

2 Channels RF Rotary Joint combined Electric Power and Signal for Radar
ECN000-04P2-16S-02R is CENO integrate slip ring combine Power, weak electric signal and 2 channels radio frequency rotary joint. Which equipment in the equipment working in low temperature environment from -40°C to +85°C. Integrate slip ring often used in the rotating connection parts of equipment. Due to electromagnetic interference and space limitations, integrated slip ring have emerged, and providing a comprehensive solution. Information about how CENO slip ring can fit your application please contact us.
Specification
| ECN000-04P2-16S-02R Specification | ||
| Current & Circuits | 4 circuits * 10A; 1 * PE; 16 circuits * 2A | |
| Rating Voltage | 0 ~ 220 VAC/VDC | |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz | |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC | |
| Contact resistance wave | ≤ 15mΩ | |
| Working temperature | -40°C~+85°C | |
| Working humidity | 60 %RH | |
| IP protection grade | IP54 | |
| Operating speed | 0~30rpm | |
| Outer diameter | Ø85mm | |
| Contact material | Precious Metal | |
| Housing material | Aluminium Alloy | |
| Service life | 5 million rotation | |
| Lead wire length | As customized | |
| RF Rotary Union | ||
| Channel | Channel 1 | Channel 2 |
| Connector type | SMA-f (50Ω) | SMA-f (50Ω) |
| Connector style | Style I | Style I |
| Frequency range | 0~4 GHz | 0~4 GHz |
| SWR (max.) | 1.2 | 1.35 |
| Insertion loss (max.) | 0.4dB | 0.5dB |
| Insertion loss wave (max.) | 0.05dB | 0.5dB |
Features
Applications
Optional
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
