Złącze obrotowe o częstotliwości radiowej
>
|
|
| Miejsce pochodzenia | Chiny |
| Nazwa handlowa | CENO |
| Orzecznictwo | ISO9001,CE,RoHS,UL |
| Numer modelu | ECN000-09P2-19S-02EG-01R |

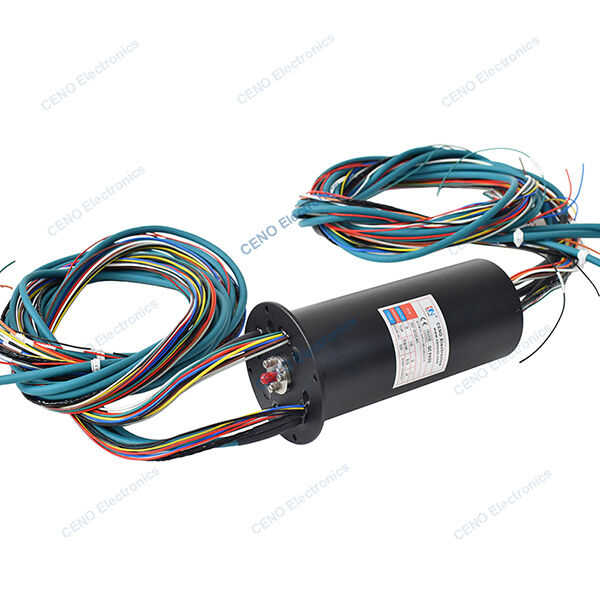

Integrate RF Slip Ring with Encoder Ethernet Signal and Radio Frequency Rotary Joint
ECN000-09P2-19S-02EG-01R is CENO Integrate Slip Ring combined Electric Power, Encoder, CANBUS, Ethernet and weak signals. CENO Integrate slip ring can be highly integrated with various transmission modules to form a multi-functional rotary connection solution, specifically used in complex systems. Features a modular design, supporting various channel combinations and customization options. For more information please contact CENO expert team.
Specification
| ECN000-09P2-19S-02EG-01R Specification | |
| Current & Circuits | 9 * 10A; 2 * 7A; 1 * Encoder; 1 * CANBUS; 2 * Ethernet Signal; 6 * Signal |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; 300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 70mΩ |
| Working temperature | -25°C~+55°C(W); -30°C~+65°C(S) |
| Working humidity | 95 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~60rpm |
| Inner / Outer diameter | Ø38.1mm / Ø76mm |
| Contact material | Precious Metal / Gold to Gold |
| Housing material | Aluminium Alloy |
| RF | Parameters |
| Frequency range | DC-18GH |
| Connector type | SMA - F(50Ω) |
| Insertion loss | ≤0.3dB |
| Insertion loss rate | ≤0.05dB |
| VSWR, max | ≤ 1.25 |
| VSWR WOW, max | ≤ 0.05 |
| Average peak power | 100w@DC-2GHz; 50w@DC2-8GHz; 250w@DC8-15GHz; 20w@DC15-18GHz |
Features
1 Integrate Encoder, Canbus, Ethernet, RF and Electric Power
2 RF Signal be up to 1 - 8 channels
3 Stable transmitting, no string code
4 Install easy & Free maintenance
Applications
1 Radar antenna
2 High definition video
3 Satellite earth station
4 EMC System
5 Medical equipment
Optional
1 Circuit, Voltage, Current
2 Signals and data
3 Contact / Housing Materials
4 Protection grade
5 Working speed & temperature
Outline drawing
