Wodoodporny pierścień poślizgowy
>
|
|
| Miejsce pochodzenia | Chiny |
| Nazwa handlowa | CENO |
| Orzecznictwo | CE,RoHS,ISO9001,UL |
| Numer modelu | ECN000-03P2-IP65 |

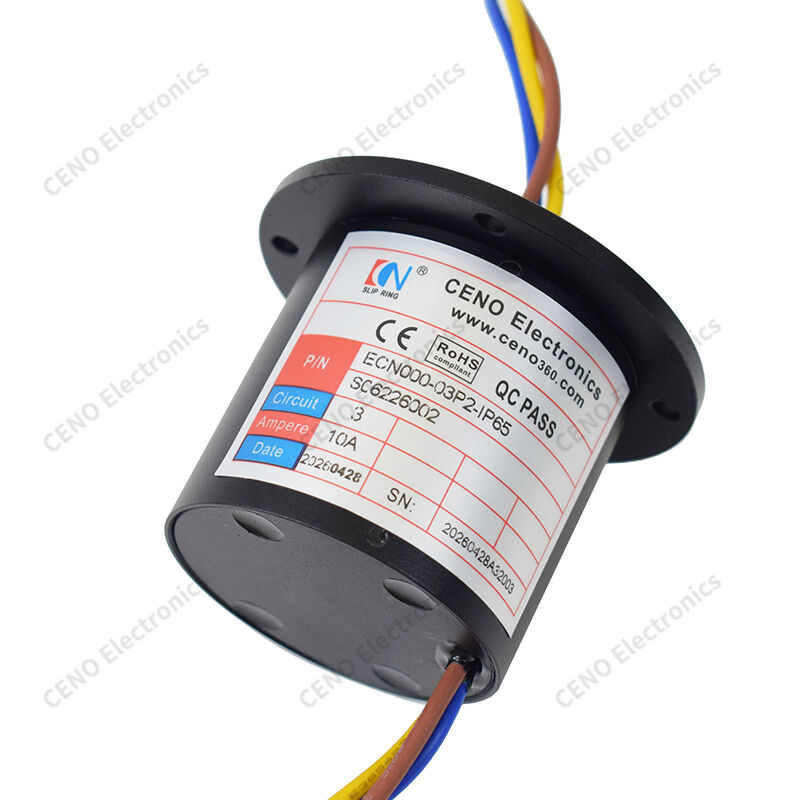

Waterproof slip ring with IP65 dustproof & waterproof
ECN000-03P2-IP65 is CENO Waterproof slip ring features 3 independent circuits with 10A current per channel, rated IP65 dustproof & waterproof for wet/outdoor rotating equipment. Adopting precious metal contact structure, it enables 360° unlimited rotation power transmission without wire tangling. Black anodized metal housing with flange mounting holes for easy installation, certified CE & RoHS compliant, factory inspected with stable low contact resistance and long service life.
Features
Applications
Optional
Specification
|
ECN000-03P2-IP65 |
Specification |
|
Protection(IP Grade) |
IP65 |
|
Working Humidity |
60%RH |
|
WorkingTemperature |
-20℃~+60℃ |
|
Rating Voltage |
0~24VAC/VDC |
|
Circuits& Current |
3 Circuits *10A(24V) |
|
Dielectric Strength |
≥1000VAC@50Hz |
|
Insulation Resistance |
500MΩ@500VDC |
|
Electrical Noise |
Max 30mΩ(50rpm) |
|
Lead Wire Length |
Rotor: 2000mm; Stator:2000mm |
|
Working Speed |
0~10 rpm |
|
Rotation Way |
Stator side flange installation |
|
Contact Material |
Precious Metal |
|
Housing Material |
Aluminum Alloy |
Outline drawing
CENO is a technologically advanced company in the slip ring field, specializing in research and development, manufacturing, and sales. We utilize advanced equipment and high-precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.
ISO9001, CE, RoHS, UL, Explosion-proof
Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training programs.
